Datasheet
Network Switch

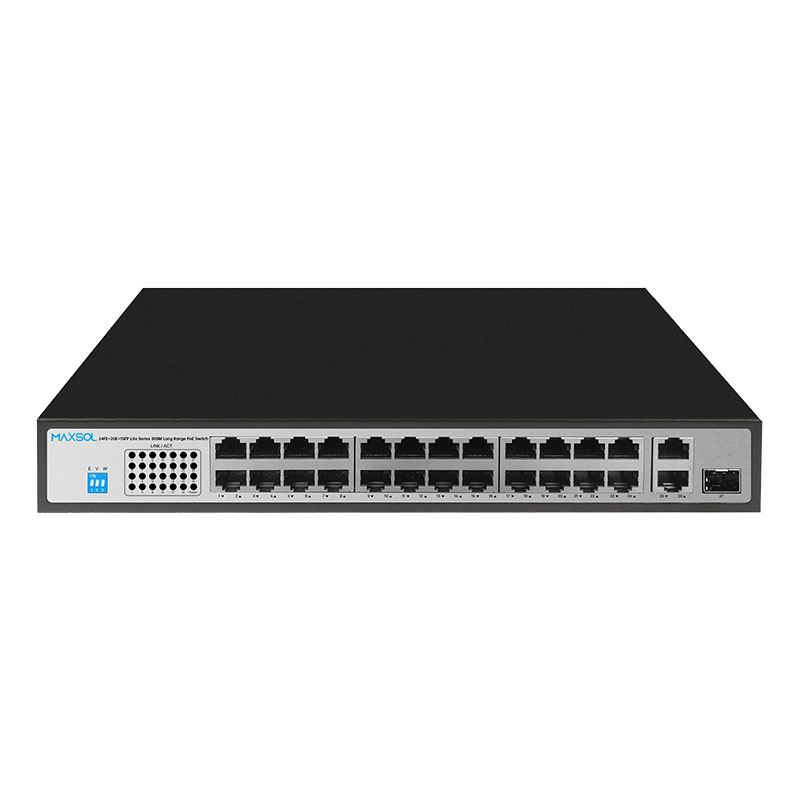

24-Port Fast Ethernet PoE+ Switch with Gigabit Uplinks
ModelPS12402FE-L
24-port Fast Ethernet PoE+ switch with 2 Gigabit RJ45 uplinks, 1 SFP slot, 300W power supply, VLAN isolation, Extend mode and PoE watchdog.
Features
- 24FE+2GE+1GF Uplink Lite Series 300M Long Range PoE Switch
- IEEE 802.3af/at compliant, up to 30 W per PoE port
- Internal power adapter supply 300W
- Support DIP switch to VLAN / Extend 300M / Watchdog
- Support AI network self-healing (watchdog) function
- Support desktop and wall-mounted, and rack-mount installation
- Plug and Play, no configuration requirements
- Metal case, internal power supply, excellent heat dissipation performance for long-term stable operation
- 6KV surge protection function
PS12402FE-L
Specification
Interfaces
- Model
- PS12402FE-L
- Fixed Port
- 24*10/100Base-T/TX PoE ports (Data/Power) 2*10/100/1000Base-T/TX RJ45 ports (Data) 1*100/1000Base-X uplink SFP fiber slot (Data)
PoE
- PoE Port
- Port 1-24 support PoE
- DIP Switch 3-Mode Function
E – Extend Mode: Extends PoE transmission distance up to 300 m while maintaining stable data and power transmission.
V – VLAN Mode: Isolates each PoE port from one another while allowing communication with the uplink port, improving network security and reducing broadcast traffic.
W – Watchdog Mode: Automatically detects unresponsive IP cameras and restarts their PoE power supply to restore normal operation, minimizing downtime and maintenance costs.
- Network Protocol
- IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3x.
- Ethernet Port Feature
- 10/100/1000Base-T(X) automatic detection, full/half Duplex MDI/MDI-X adaptive
- Forwarding Mode
- Store and Forward
Switch Property
- Switching Capacity
- 10.8Gbps
- Forwarding Rate
- 8.04Mpps
- MAC
- 2K
- Buffer Memory
- 2M
- Twisted Pair Transmission
- 10BASE-T:Cat5 UTP(≤300 meter) 100BASE-TX:Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5 or later UTP (≤100 meter)
- Power Supply Pin
- Default 1/2(+), 3/6(-);
- MAX / AVERAGE Power Per Port
- 30W/15.4W
- Total Power
- 300W
- Power Consumption
- Standby:<15W;Full load:<300W
Physical Characteristics
- LED Indicator
- Power indicator: PWR (Green); Network indicator: 1–27(Link/Act) (Green)
- Power Supply
- Built-in power adaptor AC100~240V 50-60Hz, 300W
- Operation TEMP / Humidity
- -20~+55°C:5%~90% RH non condensing
- Storage TEMP / Humidity
- -40~+75°C;5%~95% RH non condensing
- Dimension
- 310*205*45mm
- Net /Gross Weight
- <3.0kg / <4kg
- Installation Method
- desktop type, wall mounted,rack-mount installation
- Protection
- IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge; IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM±2kV; Port: ±4kV.
- Protection level
- IP30
Package Contents
- Switch
- 1 pcs
- Power cord
- 1 pcs
- Quick installation guide
- 1 pcs
