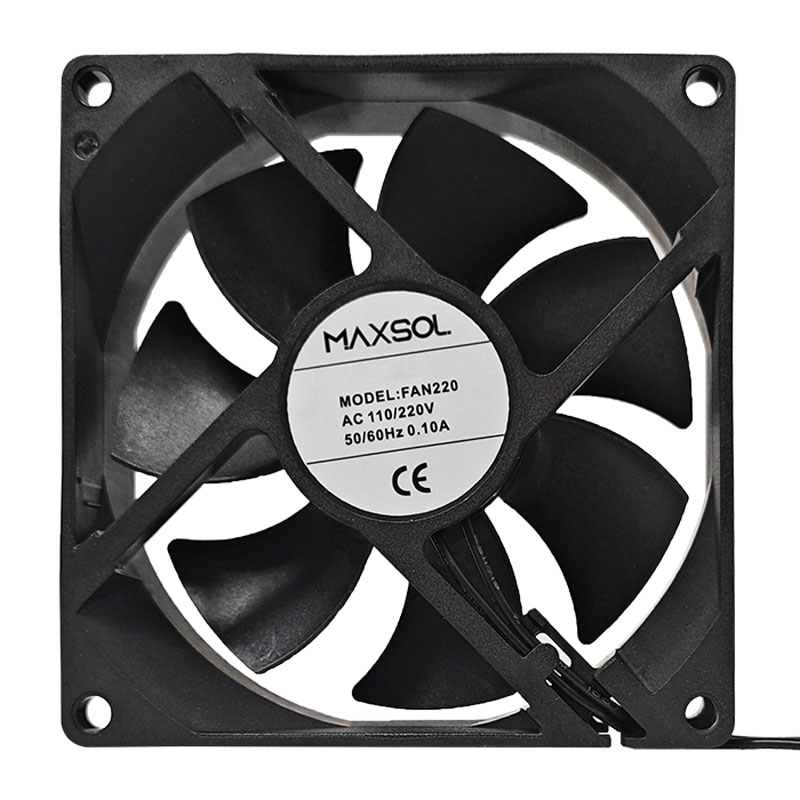

220V 92mm Temperature-Controlled AC Cooling Fan
ModelFAN220
High-performance 92mm 220V AC fan with temperature control. Features 3000 RPM, 58 CFM, and ball bearings. Ideal for industrial cooling systems and OEM usage.
Features
- 220V Temperature-Controlled Cooling Fan
- Dimensions: 92X92X25mm
- Operating voltage range: 110V-220V
- Rated current:0.01A ± 10%
- Rated input power:2.7W ± 10%
- Rated speed :3000RPM ± 10%
- Operating temperature: -10℃~ + 70℃
- Environment humidity :10%(RH)45℃ for 24hours , 98%(RH)45℃ for 24hours
- Acoustic Noise: ≤ 38.05 dBA (Maximum)
FAN220
Specification
Specification
- Model
- FAN220
- Bearing Type
- Two Ball Bearing
- Rated Voltage
- 220V
- Operating Voltage Range
- 110V – 220V
- Starting Voltage / Condition
- ≤110V, starts when temperature reaches 40℃
- Rated Current
- 0.01A ±10%
- Rated Input Power
- 2.7W ±10%
- Rated Speed
- 3000 RPM ±10%
- Maximum Air Flow
- ≥58.01 CFM
- Maximum Static Air Pressure
- ≥3.53 mm-H₂O
- Operating Temperature
- -10℃ ~ +70℃
- Storage Temperature
- -30℃ ~ +85℃
- Insulation Resistance
- ≥10 MΩ at 500V DC (between housing and lead wires)
- Dielectric Strength
- 500 VAC, 1 minute, 1 mA (between housing and lead wires)
- Acoustic Sound Level
- ≤38.05 dBA (Max)
- Dimensions (L × W × H)
- 92 × 92 × 25 mm
- Weight
- 75 g
