Model: PS11602FG

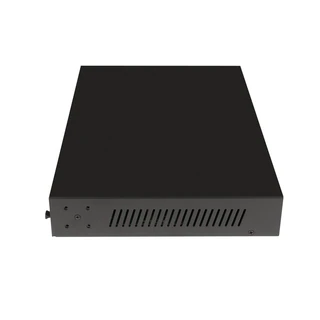

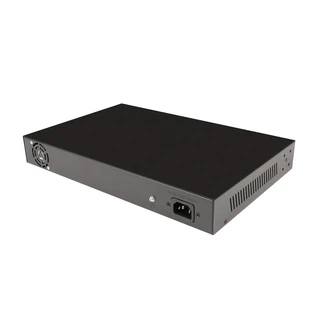

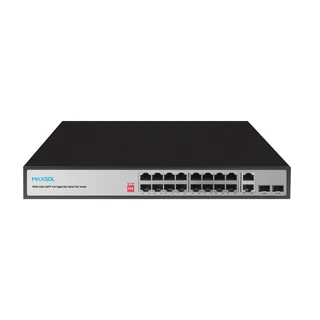

16-Port Long-Range Gigabit Unmanaged PoE Switch, 200W

16-port long-range Gigabit unmanaged PoE switch with 2 Gigabit RJ45 and 2 SFP uplinks, 200W PoE budget, 300m Extend mode, VLAN, and watchdog.

Key features

16 Gigabit PoE ports, 2 Gigabit RJ45 uplinks, and 2 Gigabit SFP uplinks
All PoE ports support IEEE 802.3af/at, up to 30W per port
E/V/W DIP modes provide 300m Extend, VLAN isolation, and AI PoE watchdog functions
200W total PoE power budget with built-in AC power supply
40Gbps non-blocking switching capacity
Desktop, wall-mounted, or 1U rack-mount installation

Send Inquiry By Emailsales@maxsol-tech.com

DatasheetDownload View

Specification

Interfaces

Model

PS11602FG

Fixed Ports

16 × 10/100/1000Base-T/TX PoE ports (data/power); 2 × 10/100/1000Base-T/TX RJ45 uplink ports (data); 2 × 100/1000Base-X SFP uplink slots (data)

PoE Standard

All PoE ports support IEEE 802.3af/at, up to 30W per port

Network Protocols

IEEE 802.3 10BASE-T; IEEE 802.3i 10Base-T; IEEE 802.3x; IEEE 802.3u 100Base-TX; IEEE 802.3ab 1000Base-T; IEEE 802.3z 1000Base-X; IEEE 802.3u 100Base-FX

DIP Switch Modes

E – Extend Mode: up to 300m transmission with automatic per-port speed adjustment (limited to 10Mbps);

V – VLAN Mode: isolates PoE ports while retaining uplink communication;

W – Watchdog Mode: detects unresponsive IP cameras and restarts PoE power automatically

Ethernet Port Features

10/100/1000Base-T(X) auto-detection, full/half duplex, auto MDI/MDI-X

Fiber Port Features

Gigabit SFP slots; fiber modules ordered separately, with single-mode/multi-mode and single-fiber/dual-fiber LC options

Switch Performance

Switching Capacity: 40Gbps
Forwarding Rate: 29.76Mpps
MAC Address Table: 8K
Buffer Memory: 4M
Forwarding Mode: Store and forward
Twisted Pair Transmission: 10BASE-T: Cat5 UTP up to 300m; 100BASE-TX and 1000BASE-T: Cat5 or later UTP up to 100m
Power Supply Pin: 1/2(+), 3/6(-)
Power Supply: 200W, AC 100–240V, 50–60Hz
Power Consumption: Standby <5W; full load <200W

Physical Characteristics

LED Indicators: PWR (green); Link/Act for ports 1–20 (green)
Operating Temperature / Humidity: -20°C to +55°C; 5%–90% RH, non-condensing
Storage Temperature / Humidity: -40°C to +75°C; 5%–95% RH, non-condensing
Installation: Desktop, wall-mounted, or 1U rack-mounted
Protection: IEC 61000-4-2 ESD: ±8kV contact, ±15kV air; IEC 61000-4-5 surge: power CM ±4kV / DM ±2kV, ports ±4kV
Dimensions: 290 × 181 × 44mm
Net / Gross Weight: <1.6kg / <2.05kg
Protection Level: IP30

Package Contents

Switch: 1 pc
Power cord: 1 pc
Quick installation guide: 1 pc
