Outdoor Solar Power System: 5 Key Buying Factors

Choosing an outdoor solar power system comes down to five key factors: the verified electrical load and interfaces, solar access during the most difficult design month, required battery autonomy, outdoor installation conditions, and the system’s ability to support future changes.

Do not compare systems by panel wattage or battery capacity alone. Ask each supplier to show how its proposed configuration matches the actual equipment, operating schedule, site conditions and maintenance plan. Product ratings are useful starting points, but they do not guarantee runtime at an unspecified location.

1. Verify the load and electrical interfaces

The first factor is the complete electrical load—not just the headline wattage of the main camera, radio or network device. An accurate equipment schedule is essential because even small omitted loads can significantly affect an off-grid system that operates continuously.

List every device the solar system must power, including:

CCTV cameras, illuminators and heaters, if fitted
Wireless access points, CPE bridges or point-to-point radios
PoE switches, injectors and media converters
Routers, gateways and edge recorders
DC converters, fans, relays and monitoring devices
Any equipment expected to be added later

For each device, record its normal power consumption, possible peak consumption, supply voltage, connector or terminal type, and operating hours per day. Use measured consumption where practical. Otherwise, request the applicable datasheet and identify whether the stated figure is typical, maximum or merely the power adaptor’s output rating.

Check the full daily energy requirement

A 10W device operating continuously consumes more energy per day than a 30W device running for only a few hours. Convert each load into daily watt-hours:

Daily energy in Wh = Load in watts × Operating hours per day

Add the results for all devices, then account for the losses associated with controllers, cabling and voltage conversion. The loss allowance should be justified by the proposed design rather than assumed to be the same for every project.

Also investigate changing loads. A camera may draw more power when infrared lighting switches on, while a radio can have brief demand peaks during transmission. If the site uses timers or motion-triggered equipment, document the duty cycle and decide whether the design must cover simultaneous maximum demand.

For a more detailed calculation process, use this off-grid solar power system sizing guide for CCTV.

Match voltage, outputs and connectors

A system with adequate stored energy can still be incompatible if it does not provide the required electrical interface. Confirm:

Nominal and permitted input voltage for every load
Number of simultaneous DC outputs required
Maximum current per output and for all outputs combined
Connector type, pin assignment and polarity
Need for regulated voltage or DC-to-DC conversion
Whether PoE equipment requires an injector, switch or converter
Start-up current and acceptable voltage drop
Cable length between the power enclosure and equipment

For example, the Maxsol CS6030 60W/30Ah system documents a 60W monocrystalline panel, 12.8V 30Ah 384Wh LiFePO4 battery, MPPT controller and three DC12V outputs. Those figures describe its scale and interfaces; they do not confirm that it can operate an unspecified device for a required number of days.

A supplier comparison should therefore show both energy compatibility and interface compatibility. Do not accept “supports CCTV” or “suitable for Wi-Fi” as a substitute for a device-by-device load schedule.

2. Assess design-month solar access and shading

An outdoor solar power system should be assessed against the month or weather period with the most difficult usable solar conditions—not an annual average or an ideal clear day.

In the Philippines, seasonal cloud cover, prolonged rain and typhoon-related weather can materially reduce charging opportunities. Conditions vary by site, so avoid relying on a single nationwide solar figure. The design input should be relevant to the actual location, panel orientation and time of year when reliable operation matters most.

Inspect the solar window

A site survey should identify the hours when direct sunlight can reach the proposed panel location. Look for current and potential obstructions such as:

Trees, branches and fast-growing vegetation
Poles, towers, antennas and overhead cables
Buildings, roof edges and perimeter walls
Hills or terrain features
Equipment installed on the same mast
Future structures or network expansions

Partial shading can be more important than it appears from ground level. Inspect the site at different times where possible, or use a solar path assessment that accounts for seasonal changes. A location that is clear at noon may still lose valuable charging time in the morning or afternoon.

Ask suppliers to state the solar data, design month, panel orientation, tilt assumption and shading allowance used in their proposal. If two bids use different environmental assumptions, their panel and battery sizes cannot be compared fairly.

Treat panel wattage as one input, not the answer

Panel wattage is a rated value, not a promise of daily energy production. Actual charging is affected by available sunlight, temperature, shading, surface dirt, cable losses, controller behaviour and battery condition.

The Maxsol CS12060 120W/60Ah system documents a 120W monocrystalline panel, 12.8V 60Ah 768Wh LiFePO4 battery, MPPT controller and three DC12V outputs. Compared with a smaller scale example, it provides higher documented panel and battery ratings. Whether that difference is sufficient depends on the site’s design-month solar access and verified daily load.

When comparing proposals, request the expected energy balance for the difficult design period. It should explain:

Estimated daily energy produced under the stated assumptions
Energy required by the complete load
Conversion and wiring losses included
Energy available to recharge the battery after poor weather
What happens if actual conditions are worse than assumed

This evidence is more useful than choosing the system with the largest panel label without knowing the design basis.

3. Set battery autonomy, temperature limits and protection

Battery autonomy is the amount of time the system is expected to support its load when solar charging is limited or unavailable. It should be defined as a project requirement, not accepted as a universal number attached to a battery capacity.

Start by deciding how much poor-weather coverage the site needs. A non-critical monitoring point with easy maintenance access may justify a different design from a remote security or communications site where an outage would require an expensive field visit.

Compare usable energy, not capacity labels alone

A battery’s nominal watt-hour rating does not automatically equal the energy available to the equipment. The design must consider:

Controller low-voltage cut-off
Permitted depth of discharge
Battery management system behaviour
DC conversion losses
Cable losses
Load voltage limits
Battery temperature
Energy reserved for recovery or protection

Ask suppliers to show the usable energy assumed in their runtime calculation and the remaining battery level at the end of the autonomy period. Proposals based on different discharge assumptions may quote very different runtimes for similar nominal capacities.

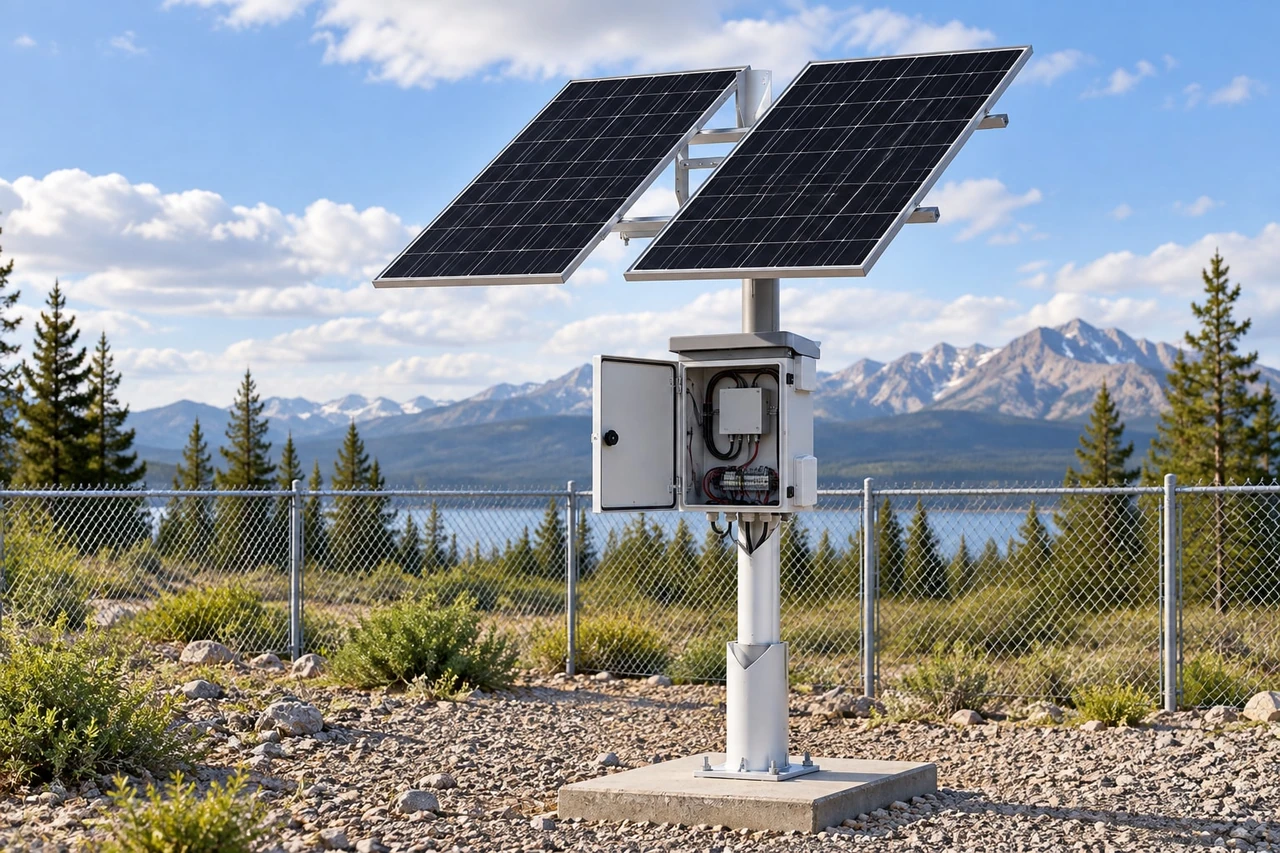

The Maxsol CS400150 400W/150Ah system documents two 200W panel modules, a 12.8V 150Ah 1920Wh LiFePO4 battery, MPPT control and four DC12V outputs. This is a larger scale example, but its suitability still depends on the load, installation and charging conditions. It should not be treated as a universal 24/7 solution.

Confirm temperature and protection limits

Outdoor enclosures can experience temperatures that differ significantly from the surrounding air, especially in direct sun. Temperature affects battery operation, charging and protection behaviour. Request the current datasheet and confirm:

Permitted charging temperature range
Permitted discharging temperature range
Controller and battery protection thresholds
Response to high or low temperature
Enclosure ventilation or thermal management requirements
Sensor location and temperature monitoring method
Procedure after a protection shutdown

Do not assume that all LiFePO4 batteries, controllers or battery management systems use identical limits.

Protection should also be reviewed as a coordinated system. Confirm the proposed measures for overcurrent, short circuits, reverse polarity, overvoltage, undervoltage and relevant surge risks. Ask which protections are built into the system and which must be supplied as external components.

4. Plan outdoor mounting, cabling and maintenance

A correctly sized system can still perform poorly if the panel moves, connectors admit moisture, cables suffer excessive voltage drop or routine access is unsafe. Installation quality is therefore part of system selection—not a separate concern to address after purchase.

Evaluate the mounting location

Review whether the structure can support the complete panel, bracket, enclosure and cable arrangement under the site’s expected conditions. The assessment should consider strong winds, heavy rain, vibration, corrosion exposure and accidental contact.

For coastal or industrial environments, ask the installer to identify suitable materials and corrosion-control measures. These should be based on the actual site rather than a generic “outdoor” description.

The panel should also be positioned so that it can be cleaned and inspected without creating unnecessary work-at-height risks. At the same time, the battery and control enclosure may require protection from direct heat, flooding, tampering and vehicle impact.

Control voltage drop and cable exposure

Long DC cable runs can reduce the voltage reaching the load. This can cause unstable operation even when the battery retains energy. Request cable calculations based on:

Maximum operating current
One-way cable distance
Conductor size and material
System voltage
Permitted voltage drop
Connector and terminal losses
Future load allowance

The design should also define cable routing, strain relief, bending radius, drip loops, conduit or armour where required, and separation from sources of interference or physical damage.

If cameras or network devices use PoE, document where the DC-to-PoE conversion occurs. Confirm the output standard required by the powered device, total PoE demand, Ethernet distance and grounding arrangement. A system with DC12V outputs does not directly establish compatibility with every PoE device.

For camera-focused projects, this guide to choosing a solar power system for outdoor security cameras covers additional questions about camera load, night operation and site planning.

Define maintenance before installation

Ask how often the following items should be inspected under the actual site conditions:

Panel cleanliness and new shading
Mounting bolts, brackets and alignment
Cable insulation, glands and connectors
Enclosure seals and signs of moisture
Battery, controller and load terminals
Fault indicators, logs or monitoring data
Vegetation around the panel and equipment

Maintenance frequency will vary. Dust, bird droppings, salt exposure, nearby construction and rapid vegetation growth may require more frequent checks. The supplier should explain the inspection method and required tools rather than offer an unsupported maintenance-free claim.

5. Check lifecycle support and expansion

The final factor is whether the system remains practical when equipment, site conditions or operational requirements change. A proposal that only meets the initial load with no documented allowance may require major modification when another camera or radio is added.

Ask what can be expanded safely

Expansion is not simply a matter of connecting another panel or battery. Adding components can exceed controller, wiring, protection, enclosure or output limits. Before purchase, ask:

What is the controller’s maximum solar input?
What battery configuration is permitted?
Can additional outputs be added, and under what limits?
Is there spare enclosure space for approved accessories?
Can panel capacity be expanded without replacing the controller?
Must replacement batteries match a particular electrical configuration?
What recalculation is required when the load increases?

Any future modification should be checked against the current datasheet and supplied configuration. Do not assume that parts from different models or generations are interchangeable.

Compare documentation and replaceability

Useful lifecycle documentation may include a wiring diagram, bill of materials, configuration record, controller settings, protection schedule and maintenance instructions. Record model numbers and installed settings at handover so future technicians are not forced to reconstruct the design.

Also ask suppliers to identify which parts are standard service items and which are system-specific. Confirm current commercial terms directly, including warranty scope, exclusions, replacement process and technical support arrangements. These terms can vary and should not be inferred from the product category or brand.

Lifecycle comparison should include the likely work required to:

Replace a battery, controller or damaged panel
Diagnose a low-voltage shutdown
Add another load
Change from DC-powered equipment to PoE equipment
Relocate or reorient the panel
Update protection after a system expansion

Maxsol’s documented portfolio includes LiFePO4 solar systems alongside outdoor networking and power equipment, which can be relevant when evaluating the interfaces between power, wireless and surveillance devices. However, compatibility still needs to be verified for the exact products and configuration selected.

Five-factor supplier comparison checklist

Use the same questions and evidence requirements for every bidder. This prevents a detailed, conservative proposal from appearing less attractive than a vague proposal built on optimistic assumptions.

Factor	Questions to ask	Evidence to request	Common warning sign
Verified load and interfaces	Has every device, operating schedule and peak load been included? Are voltage and connectors compatible?	Load schedule, daily Wh calculation, output limits and wiring diagram	Selection based only on the main device wattage
Design-month solar access	Which month and solar conditions were used? How was shading assessed?	Site survey, solar assumptions, orientation and energy balance	Runtime based on ideal sunlight or annual averages alone
Battery autonomy and temperature	How much usable energy is assumed? What protection and temperature limits apply?	Autonomy calculation, datasheets, cut-off settings and protection details	Nominal battery capacity presented as fully usable energy
Outdoor installation and maintenance	How will panels, enclosures and cables handle the actual site?	Mounting plan, cable calculations, material schedule and inspection plan	“Outdoor-ready” stated without installation details
Lifecycle support and expansion	Which components can be expanded or replaced, and within what limits?	Controller limits, configuration record, parts information and support terms	Unverified claims that any panel, battery or load can be added

Before deciding, confirm that all suppliers used the same load list, autonomy target, design month and installation boundaries. If assumptions differ, request a revised comparison rather than judging proposals by panel wattage, battery amp-hours or price alone.

As a practical next step, compare the linked Maxsol scale examples against your required port count, measured load, cable distance, power interfaces, outdoor environment and management needs. Then verify the current datasheet, supplied configuration, controller limits, charging temperatures and protection before specifying a model.
